Slim Type Design, Super High Brightness; Ultra High Definition, HD performance;
Different pixel pitch available
2 mm, 5000 nits; 2.5 mm, 5000 nits; 3 mm, 3500 nits; 3.33mm, 4800 nits; 5mm, 5000 nits
Taxi LED Display
10/06/2020
Taxi LED Display
Slim and light design
Smart and Intelligent LED device
Taxi LED display is NSE Patent design product since 2014. We had upgraded our design to 4th edition. At the same time, NSE provides wide range of pitch pixels from 5mm to the current 1.83mm. NSE is leading the trend of taxi digital signage.
NSE car Top LED Display integrated with a smart controller system. By build-in WIFI internet-connected, Geo-location modular, 4G model. The taxi top LED display can efficiently bring income on their daily advertising.
The taxi led display comes with high resolution and high brightness smart LED panels, double-sides display effect. NSE best-in-class smart taxi screen supports HD content video or pictures. That you can reach consumers with full-motion creativity at eye-level.
Stable Performance with Low Power Consumption
NSE adopt high quality and stable LED components. The high refresh rate driving IC, and vehicle dedicated power supply to get lower power consumption.
Taxi top led display has passed a full series of tests under different use environments, IP65 waterproof and moisture-proof.
Which extends the service life of the screen. Saving money for future maintenance.
Reliable LED Motion Device
Taxi led display High-quality materials and parts used for main structure. To ensure taxi led screen in the moving environment. Smart circuit design and power connection with over voltage and over current protection ensure. The highest performance of LED panel and whole system running.
The car top LED display panel is tested under the temperature 70℃ and 80% humidity for 96 hours. The whole unit is testing at 70℃ for 24 hrs and conducts 100% vibration testing. 72 hours of aging testing before delivery. We ensure all the screen is tested before delivery.
NSE taxi top led display has passed the testing of vehicle electronics and is CE, ROHS, FCC certified.
Built-in multi-function controller
NSE offer smart asynchronous controller, group Intelligent Control(GIC System), location Precise Advertising. The advertising Management System, 3G/4G/WIFI/USB control, as well as GPS real-time monitoring.
Taxi led screen supports both Web and APP control. By using this controller can easily extend your campaigns to out-of-home.
Easy Installation and fast maintenance
NSE taxi top LED display combined with a modular design of different parts. So that we can get it easily installed and quickly for maintenance. Without request for professional tool. You can easily insert and remove the sim card to change control methods as well.

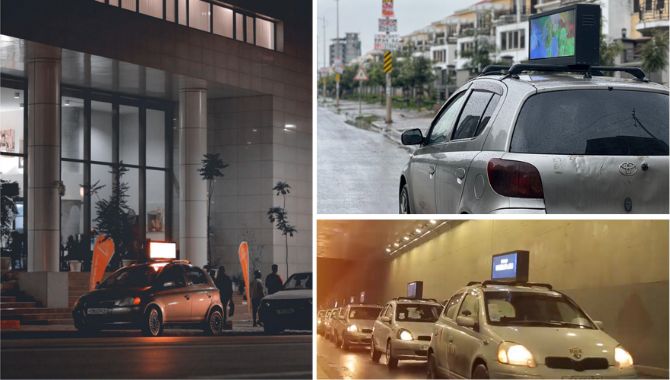

Our car top LED display device can be easily mounted on different car tops by using a car roof rack. NSE offering different size roof rack to choose from. NSE LED team will provide a full guide video to teach. You how to maintenance led taxi roof sign step by step.
Customization service available
Car top led display support customized frame, side logo, screen color and size.
LEDs selection to meet different project budget.
NSE can offer SDK of the software to clients to second develop their own advertising platform.
Taxi LED Display video introduction
Taxi Series Spec-TS Series.
| Model Type | P1.86 | P2 | P2.5 | P3.33 | P5 |
|---|---|---|---|---|---|
| Pixel pitch | 1.86mm | 2mm | 2.5mm | 3.33mm | 5mm |
| Destiny | 289,050 dot/m2 | 250,000 dot/ m2 | 160,000 dot/ m2 | 90,000 dot/ m2 | 40000 dot/ m2 |
| LED Type | SMD1415 | SMD 1415 | SMD1921 | SMD 1921 | SMD 2727 |
| Pixel type(R / G / B) | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) | 1R1G1B (3 in 1) |
| Module size | 320*160mm | 320*160mm | 160*160mm | 320*160mm | 160*160mm |
| Module Resolution | 172*86dot | 160*80dot | 64*64dot | 96*48dot | 32*32dot |
| Sreen Size (H*W) | 960mm*320mm | 960mm*320mm | 960mm*320mm | 960mm*320mm | 960mm*320mm |
| Feet Size | 3.15*1.05 feet | 3.15*1.05 feet | 3.15*1.05 feet | 3.15*1.05 feet | 3.15*1.05 feet |
| Screen Resolution | 516*172 dot | 480*160 dot | 384*128 dot | 288*96 dot | 192*64 dot |
| Frame Size | 1100mm( L) x 410mm(H) XW:164mm(bottom)/ 99mm (top) | 1100mm( L) x 410mm(H) XW:164mm(bottom)/ 99mm (top) | 1100mm( L) x 410mm(H) XW:164mm(bottom)/ 99mm (top) | 1100mm( L) x 410mm(H) XW:164mm(bottom)/ 99mm (top) | 1100mm( L) x 410mm(H) XW:164mm(bottom)/ 99mm (top) |
| Case Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Screen Weight | 24 kg | 24 kg | 23 kg | 23 kg | 23 kg |
| Drive mode | 1/32 | 1/32 | 1/32 | 2021-01-24 00:00:00 | 2021-01-08 00:00:00 |
| Viewing Distance | 1--8M | 1--10M | 1--20M | 1--20M | 3--50M |
| Brightness | 4000 nit | 4500 nit | 5000 nit | 4500 nit | 5500 nit |
| Viewing Angle | 140°(H)/140°(V) | 140°(H)/140°(V) | 140°(H)/140°(V) | 140°(H)/140°(V) | 140°(H)/140°(V) |
| Refresh rate | 3840 Hz | 2880 Hz | 1920Hz / 3840 Hz(Optional) | 1920Hz | 1920Hz |
| Input voltage | DC9--24V | DC9--24V | DC9--24V | DC9--24V | DC9--24V |
| Maximum Power Consumption | 450w | 450w | 430w | 400w | 420w |
| Average Power Consumption | 130w | 130w | 120w | 120w | 150w |
| Control method: | Asychronous | Asychronous | Asychronous | Asychronous | Asychronous |
| Temperature Operating (℃) | -40°～+75° | -40°～+75° | -40°～+75° | -40°～+75° | -40°～+75° |
| Working Humidity | 10%–90%RH | 10%–90%RH | 10%–90%RH | 10%–90%RH | 10%–90%RH |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Application | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Certificate | CE./ROHS/FCC | CE./ROHS/FCC | CE./ROHS/FCC | CE/ ROHS/FCC | CE./ROHS/FCC |
FAQ
How can I install the commercial digital in taxis on the roof of my vehicle?
To fix our digital sign roof for taxi on the top of the vehicle. You will need to use a roof rack. The different vehicles may need different roof racks.
How does the taxi led screen work, does it has a battery itself?
The commercial digital in taxis needs to connect with the car’s battery to work. The car battery is the only way to provide electricity to the LED screen while the vehicle’s moving. There is no battery itself.
How do I send the program to the digital sign roof for taxi?
The built-in software support 4G, WIFI, USB, and GPS. You can send programs remotely or near the car by smartphone or PC.
What if some problems appear about taxi led screen? How will you provide support?
NSE is an ISO9001 factory integrating manufacturing, R&D, sales, and service. NSE product will go through strict test before delivery. Basically, our product will not have a big problem while using it. There are spare parts alone with the taxi led display, you can easily replace the broken part by using it. If there are software problems, we have professional software engineers to back you up.
What is your lead time?
To guarantee fast delivery and reduce time cost, we keep P3.33 digital sign roof for taxi 100pcs in stock. We can deliver to our forwarder in 3 days after receiving your full payment.
